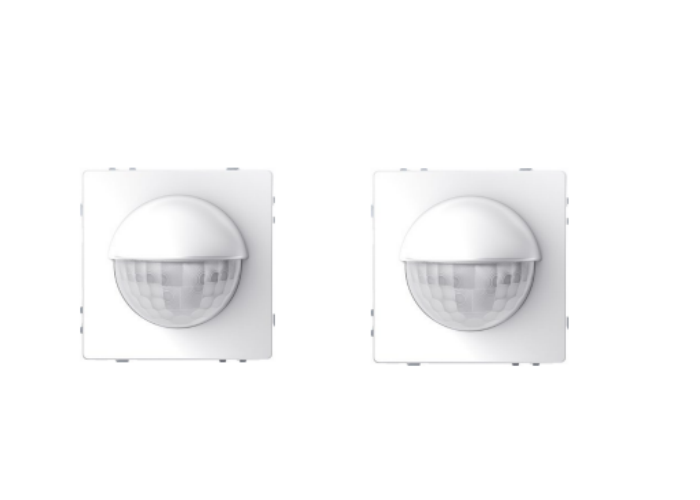

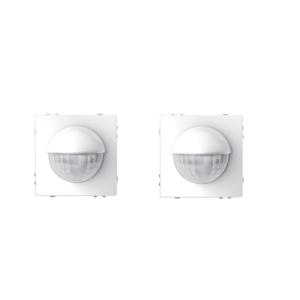

Schneider KNX ARGUS Presence With Light Control IR Receiver MTN644592

Brand Name : Schneider

Model Number : KNX ARGUS Presence

Certification : CE

Place of Origin : EU

MOQ : 5

Price : 50-300USD

Payment Terms : T/T,Western Union

Delivery Time : 5 days

Packaging Details : Carton

Material : ABS

Color : White/Green

Contact Now

Schneider KNX ARGUS Presence With Light Control IR Receiver MTN644592
About KNX ARGUS Presence:
1. KNX Software Functions
Dimming control: Supports different dimming curves, dimming speeds, and uniform dimming time
Memory & delay functions: Equipped with memory function, ON/OFF delay, and staircase time function (with/without manual OFF function)
Scene & central control: Allows storage/retrieval of up to 8 scenes (with stored brightness values) and offers central control function
Advanced logic: Features logic operation, priority control, and blocking function
Status & recovery: Provides real-time status feedback and preset behavior settings for bus voltage recovery
2. Device Specifications
Switch contact: Used for switching electronic ballasts/transformers
Nominal voltage: AC 230 V, 50-60 Hz
Nominal current: 16 A, cosϕ = 0.6
Switching capacity: AC 230 V, 3600 W, cosϕ = 1
Capacitive load: AC 230 V, 16 A, 200 µF
Load compatibility (by lamp type):
Incandescent lamps: AC 230 V, max. 3600 W
Halogen lamps: AC 230 V, max. 2500 W
Fluorescent lamps: AC 230 V, max. 3600 VA (uncompensated); AC 230 V, max. 2500 VA (with parallel compensation)
LV-halogen lamps (with wound transformer): max. 2000 VA
0-10 V interface: Current range 0.12-100 mA; Voltage range DC 0-10 V
Device width: 4 HP (approx. 72 mm)
Package contents: Includes bus connecting terminal and cable cover
KNX Software Functions
  • Switching, dimming or blind control via 1 or 2 inputs
  • Positioning values for blind control (8-bit)
  • Pulse edges with 1-, 2-, 4-, or 8-bit telegrams
  • Differentiation between short/long operation
  • Initialisation telegram
  • Cyclical sending
  • Pulse edges with 2-byte telegrams
  • 8-bit linear regulator
  • Disable function
  • Break/make contact
  • Debounce time
Model Comparison
Specification MTN644492 MTN644592
Quantity 4 8
Number of Modules 2.5 modules 4 modules
Function Connects traditional buttons or floating contacts Connects traditional buttons or floating contacts
Installation Location Cabinet Cabinet
Terminal Type Plug-in screw terminals Plug-in screw terminals
Voltage-Related -- / 10 V -- / 10 V
Current-Related -- / 2 mA -- / 2 mA
Others -- 50 m
